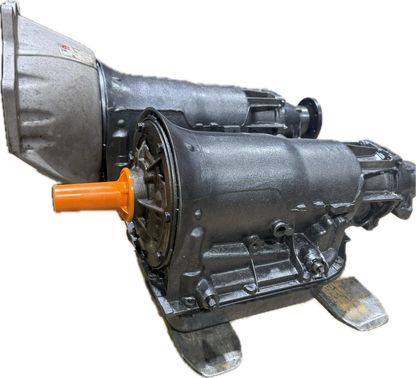

Stage 1 TH400

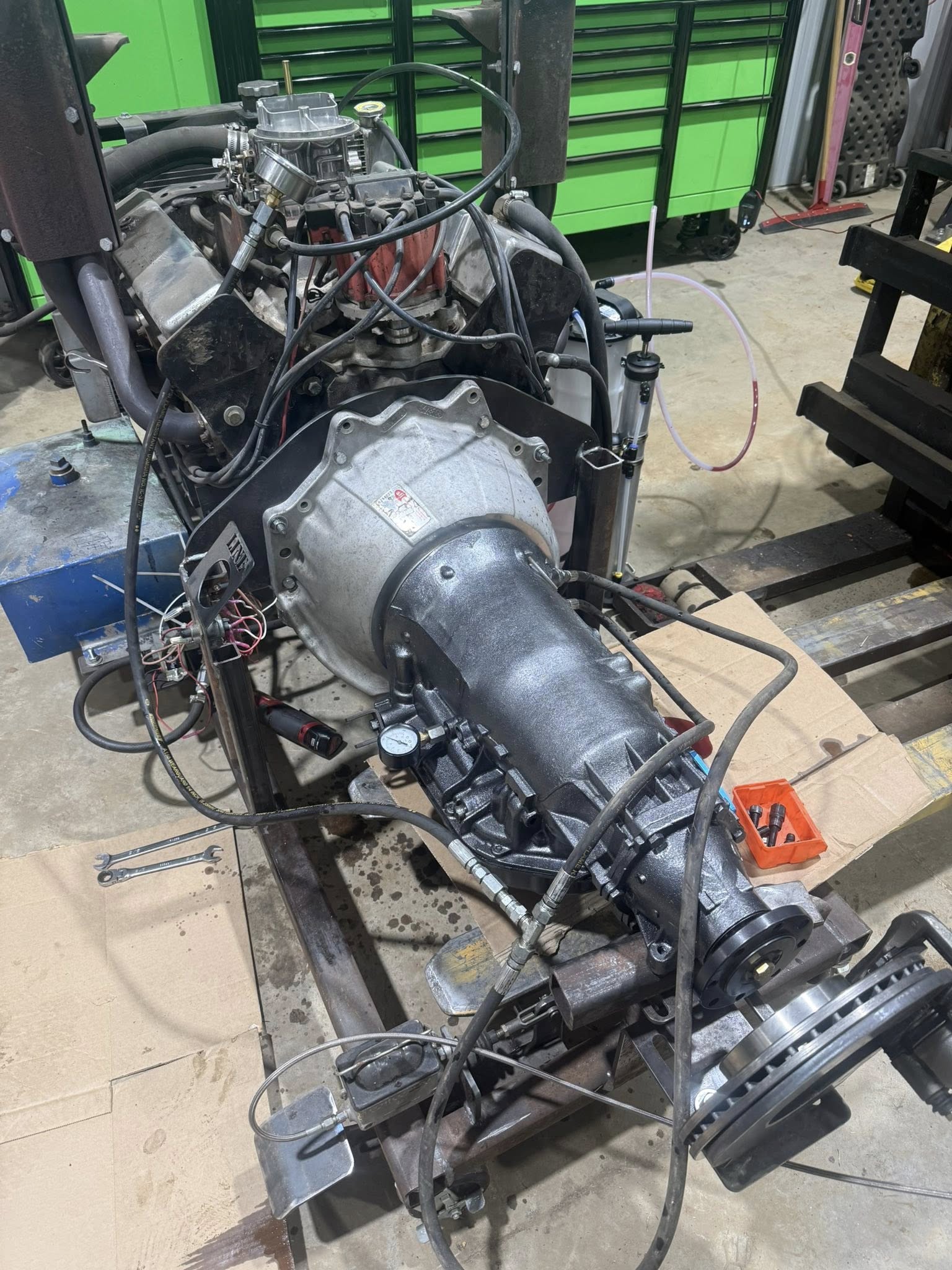

Entry level first and reverse turbo 400 with sprag. No check balls. Custom separator plate. Verified fixed 200psi line pressure. New steel trust washers.  All new seals, gaskets, and filter.  Stage 1 builds will come with the pan that is on the provided core, if no core is provided stage 1 transmissions will be built with a standard shallow stock pan (more information below on cores). Output shaft is drilled and tapped for bolt on yoke. Stage 1 builds come with threaded short dipstick. All transmissions are tested on a run stand to verify line pressure, cooler line pressure, and shift function, transmissions will be drained before pickup.

Price listed is for transmissions picked up, if you need a trans shipped please call ahead to handle core drop off or core charge as well as freight cost.  I don't go to a ton of shows but could like arrange meeting for larger group orders.

All builds must have a buildable core or a $300 core charge will need to be paid at pickup or prior to shipping.

Below are links to more information on transmission builds, cores, and general tips.

Core information

General information

Installation information

If you have a special circumstance for a trans build please message, text, or call. Do not assume it is covered in ordering through the website.

As a note your build is scheduled and in the que once full payment or a deposit is received. If you have questions please get ahold of us.
